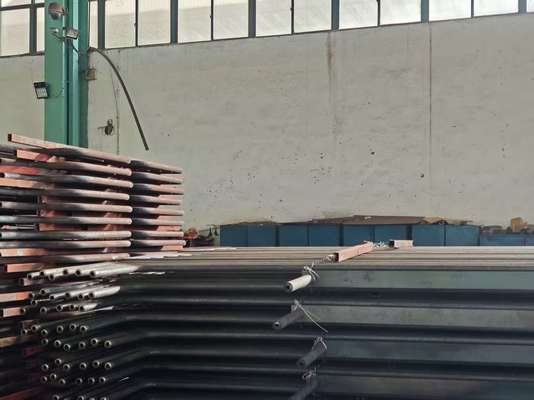

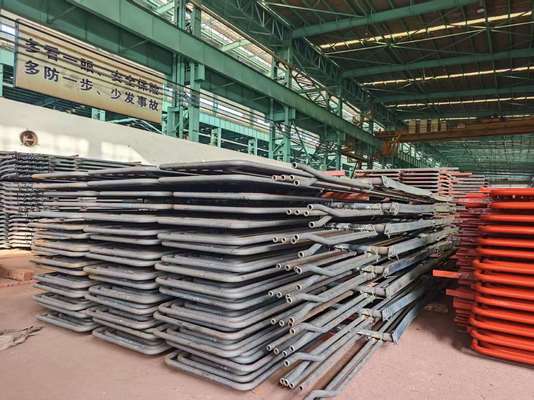

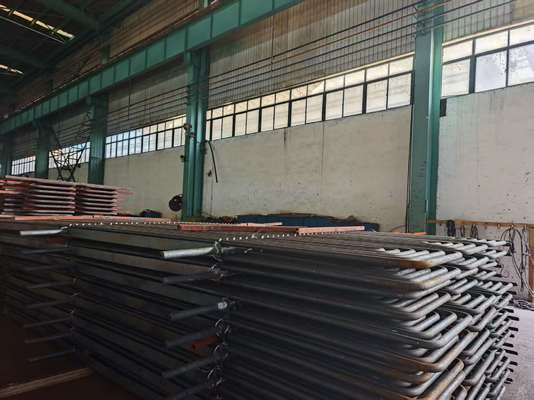

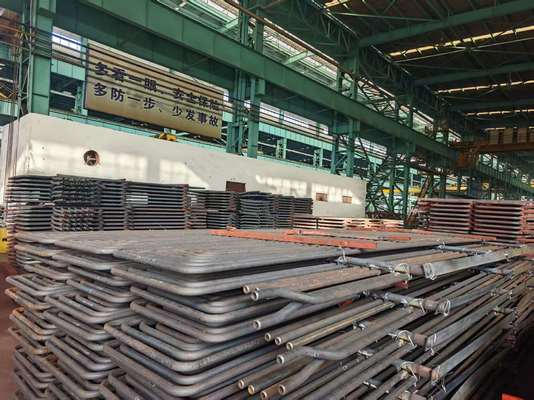

Anti Corrosion Carbon Steel Superheater - Coal Fired CFB Power Plant Boiler Parts
Product Details
| คุณสมบัติ: | ทนต่ออุณหภูมิสูง ทนต่อการกัดกร่อน ทนทาน ปรับแต่งได้ | วัสดุ: | เหล็กกล้าคาร์บอน, โลหะผสมเหล็ก, สแตนเลส, โลหะผสมนิกเกิล, Hastelloy, Inconel, Incoloy, เหล็กดูเพล็กซ์ |
|---|---|---|---|
| ความยาวของขดลวด: | ปรับแต่ง | วัสดุขดลวด: | เหล็กกล้าคาร์บอน, โลหะผสมเหล็ก, สแตนเลส, โลหะผสมนิกเกิล, Hastelloy, Inconel, Incoloy, เหล็กดูเพล็กซ์ |
| การรักษาพื้นผิว: | การทาสี, การกระปุก, การเคลือบผง, การเคลือบ | รูปร่าง: | สายตรง รูปแบบ U สเปนเทน |
| ใบสมัคร: | หม้อต้มน้ำ, โรงไฟฟ้า, ปิโตรเคมี, การกลั่นน้ำมัน, เคมีภัณฑ์, กระดาษและเยื่อกระดาษ, สิ่งทอ, น้ำตาล, เภ | ขนาด: | ปรับแต่ง |
| การบํารุงผิวโค้ล: | การทาสี, การกระปุก, การเคลือบผง, การเคลือบ | ประเภทคอยล์: | เปลือย, ครีบ |
Product Description
Anti Corrosion Carbon Steel Superheater - Coal Fired CFB Power Plant Boiler Parts
Description
For power plant boiler, it is a crutial way to increase thermal economy of thermal power station by improving parameter of superheated steam. The increase of superheated steam parameters are limited by metal materials. The design of superheaters must make sure that the temperature of outer wall of heating surface pipes is lower than allowable temperature of oxidation resistance of steel, and meanwhile make sure its mechanical strength. with the development of metal material used in boilers, power station boilers in our country already generally apply high pressure, high temperature(9.8MPa, 540 degrees) and superhigh pressure parameters(13.7 MPa, 540 and 555 degrees), and have developed subcritical pressure parameters(16.7MPa, 540 and 555 degrees). Now lots of boilers apply supercritical pressure parameters(24.5MPa, 540-570 degrees), and even very few units apply higher pressure and temperture parameters.
Application
use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Product Highlights
Anti Corrosion Carbon Steel Superheater - Coal Fired CFB Power Plant Boiler Parts How to enhance heat transfer efficiency in superheater coil design? Use spiral winding structures to enhance turbulence and incorporate nano-surface treatments to reduce condensation thermal resistance, significantly ...
